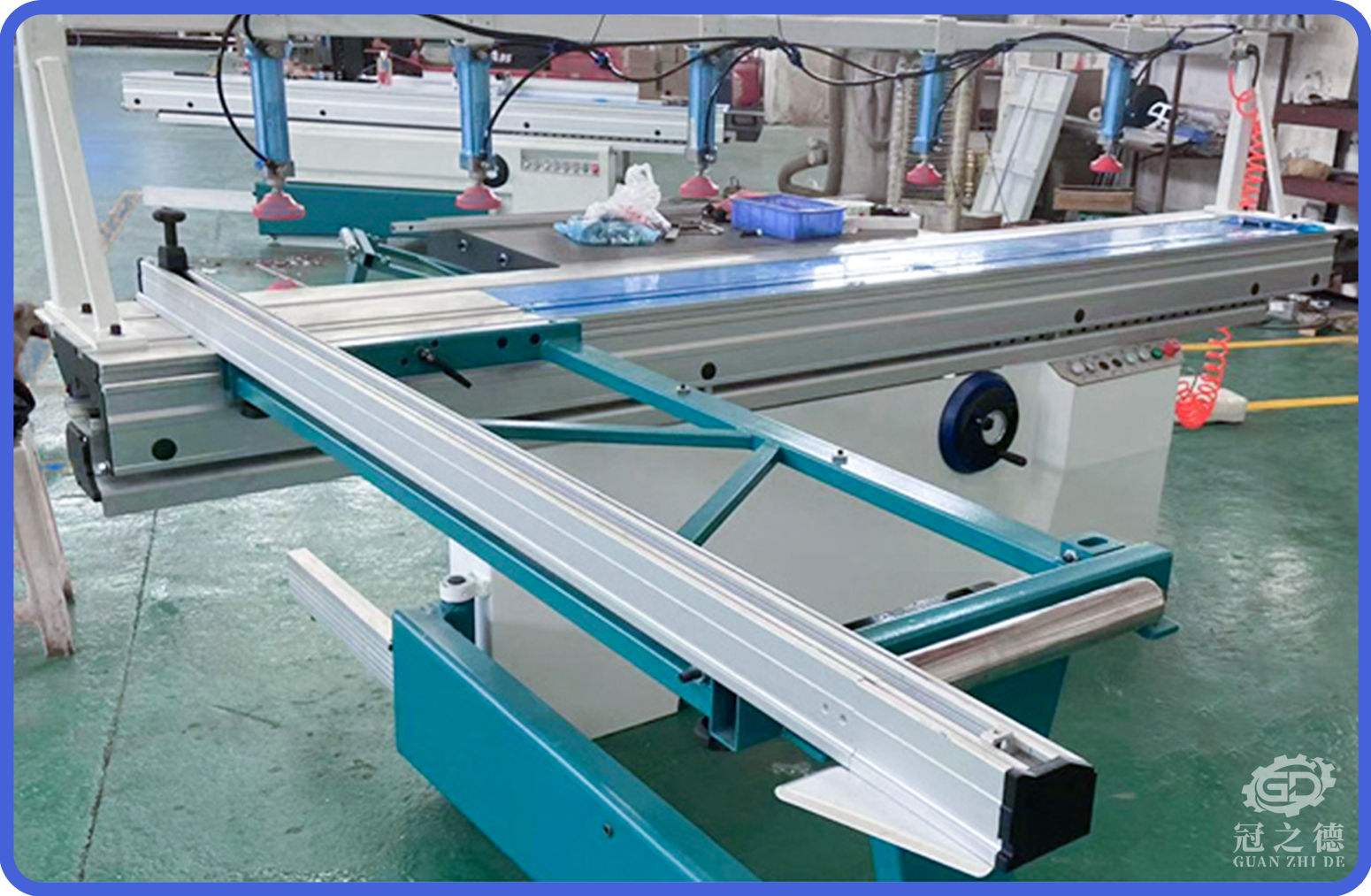

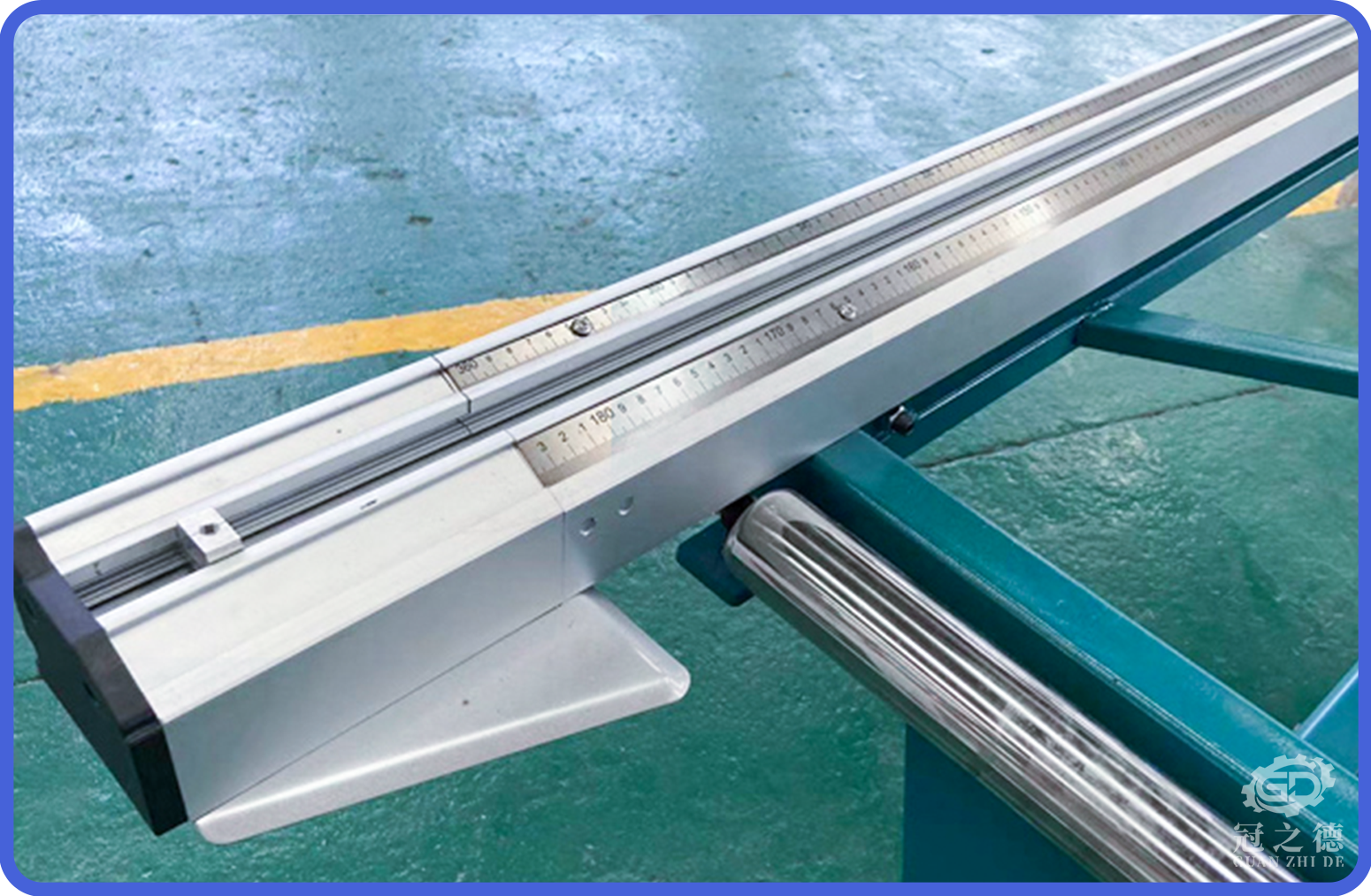

European style large guiding rule ensures stability and smooth driving of the mountain.
melody@zhongercnc.com +86-13724936060
Maximum sawing size 3200mm Right slice width 1300mm Maximum diameter of main saw blade 300mm Main saw shaft diameter 30mm Groove saw blade diameter 120mm Groove saw shaft diameter 20mm Maximum sawing speed 75(53)mm
| Product Description |
| Technical Data |
| Maximum sawing size | 3200mm | Main saw speed (slot saw) | 4000/5000(9000)r p.m |
| Right slice width | 1300mm | Saw base dust suction port diameter | 100mm |
| Maximum diameter of main saw blade | 300mm | Vacuum cleaner | 1300m3/h |

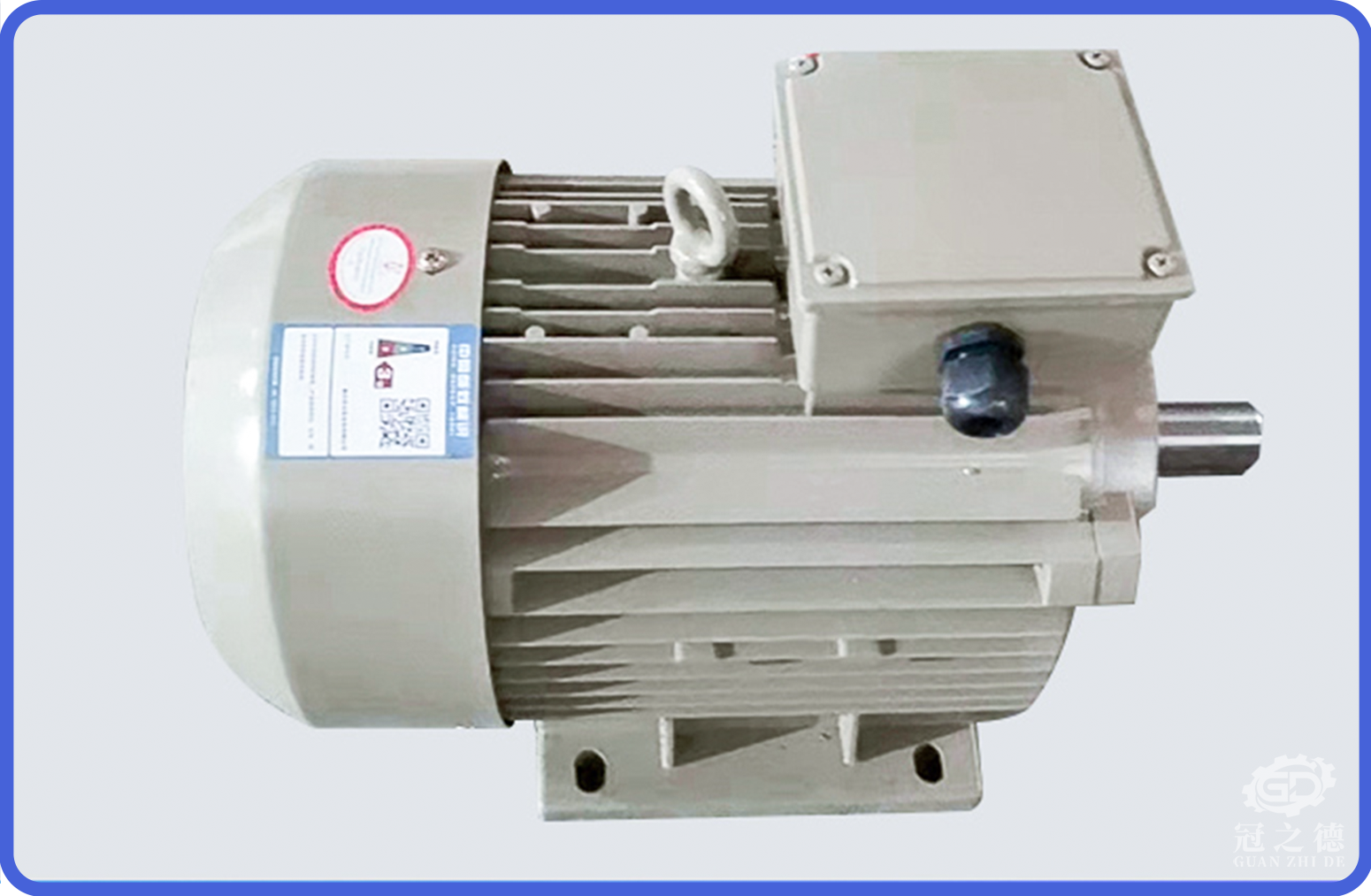

| Main saw shaft diameter | 30mm | Main saw motor | 5.5(7.5) KW(HP) |
| Groove saw blade diameter | 120mm | Slot saw motor | 0. 75(1) KW (HP) |
| Groove saw shaft diameter | 20mm | machine weight | 750kg |
| Maximum sawing speed | 75(53)mm | Package size | 3230*1120*1120mm |

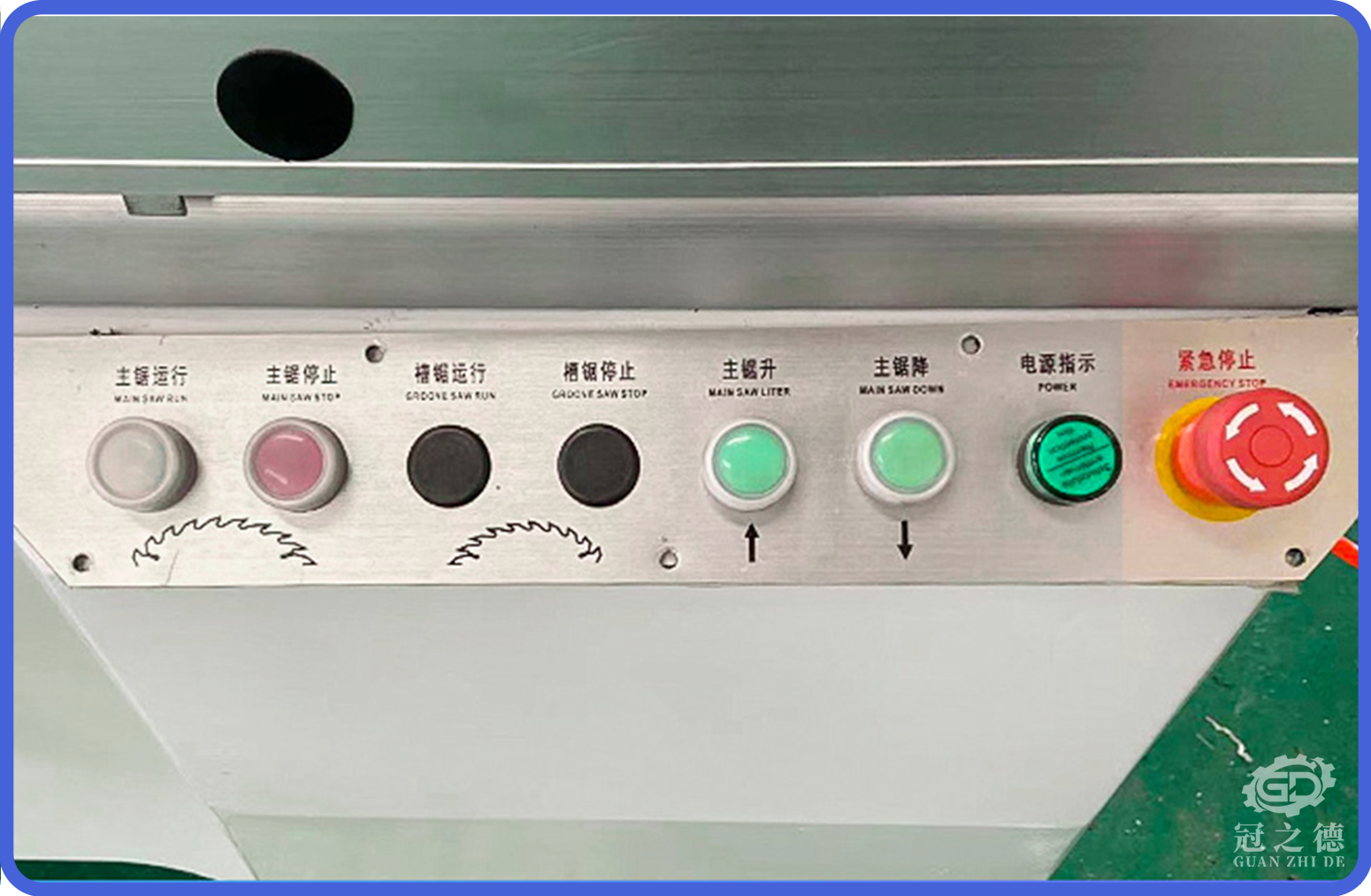

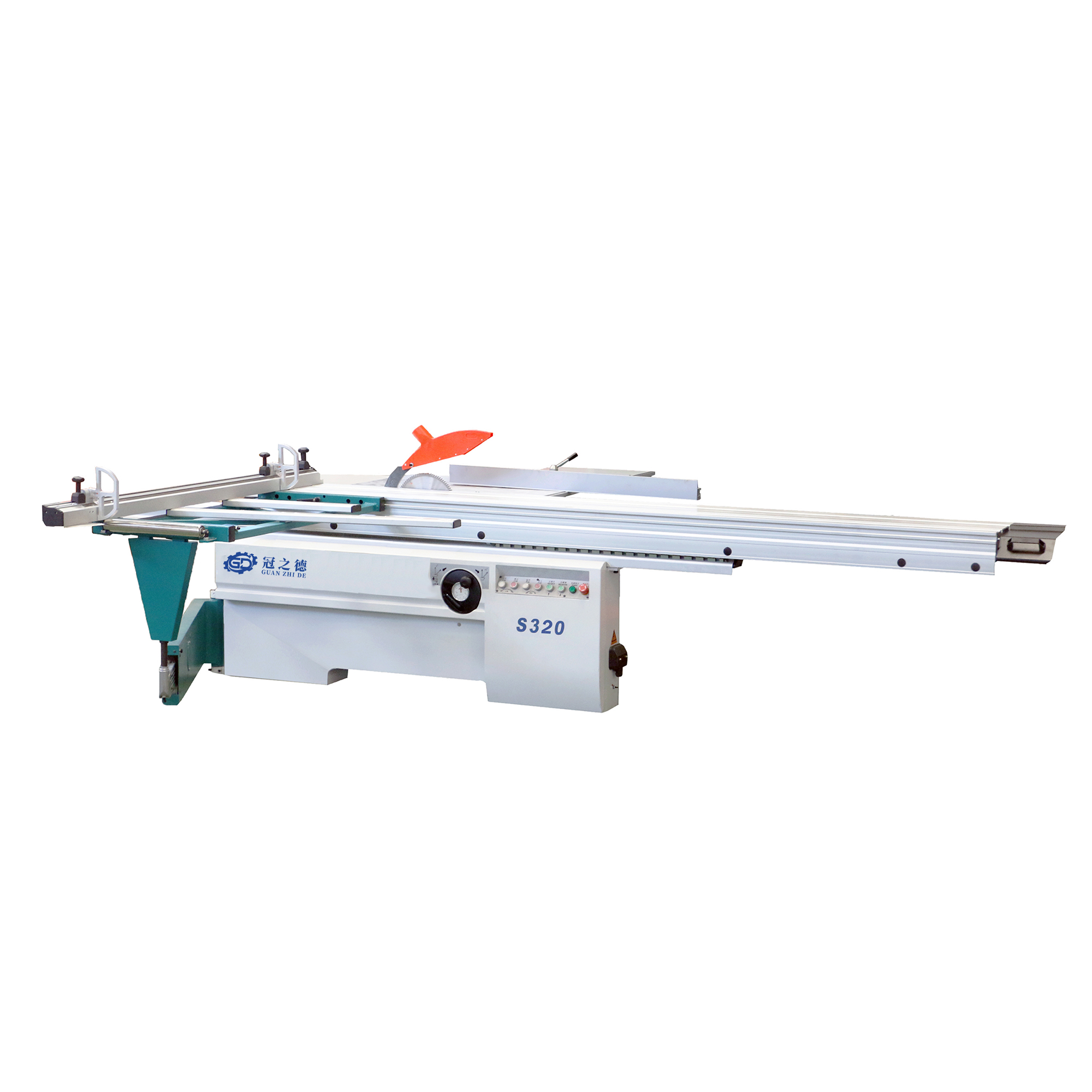

| Product real shot and details |
