X-axis maximum travel 1600mm Maximum travel of Y axis 2800mm Z axis maximum travel 200mm X-axis maximum positioning speed 70m/min Y axis maximum positioning speed 70m/min Z axis maximum positioning speed 20m/min
| Product Description |
| Technical Data |
| X-axis maximum travel | 1600mm | Number of spindles | 12支，自动换刀 |
| Maximum travel of Y axis | 2800mm | Shank diameter | 12.7、6.35、12、10、6 |
| Z axis maximum travel | 200mm | Motor power | 9kw |
| X-axis maximum positioning speed | 70m/min | Spindle speed | 24000r/min |
| Y axis maximum positioning speed | 70m/min | Total power | 20kw |
| Z axis maximum positioning speed | 20m/min | Operating voltage | AC380V,50HZ |
| X-axis machining range | 1300mm | Working pressure | 0.6-0.8Mpa |
| Y-axis machining range | 2800mm | Machine net weight | 2.8T |
| Z-axis machining range | 170mm | Dimensions | 3850x2300x2100mm |
| Product real shot and details |

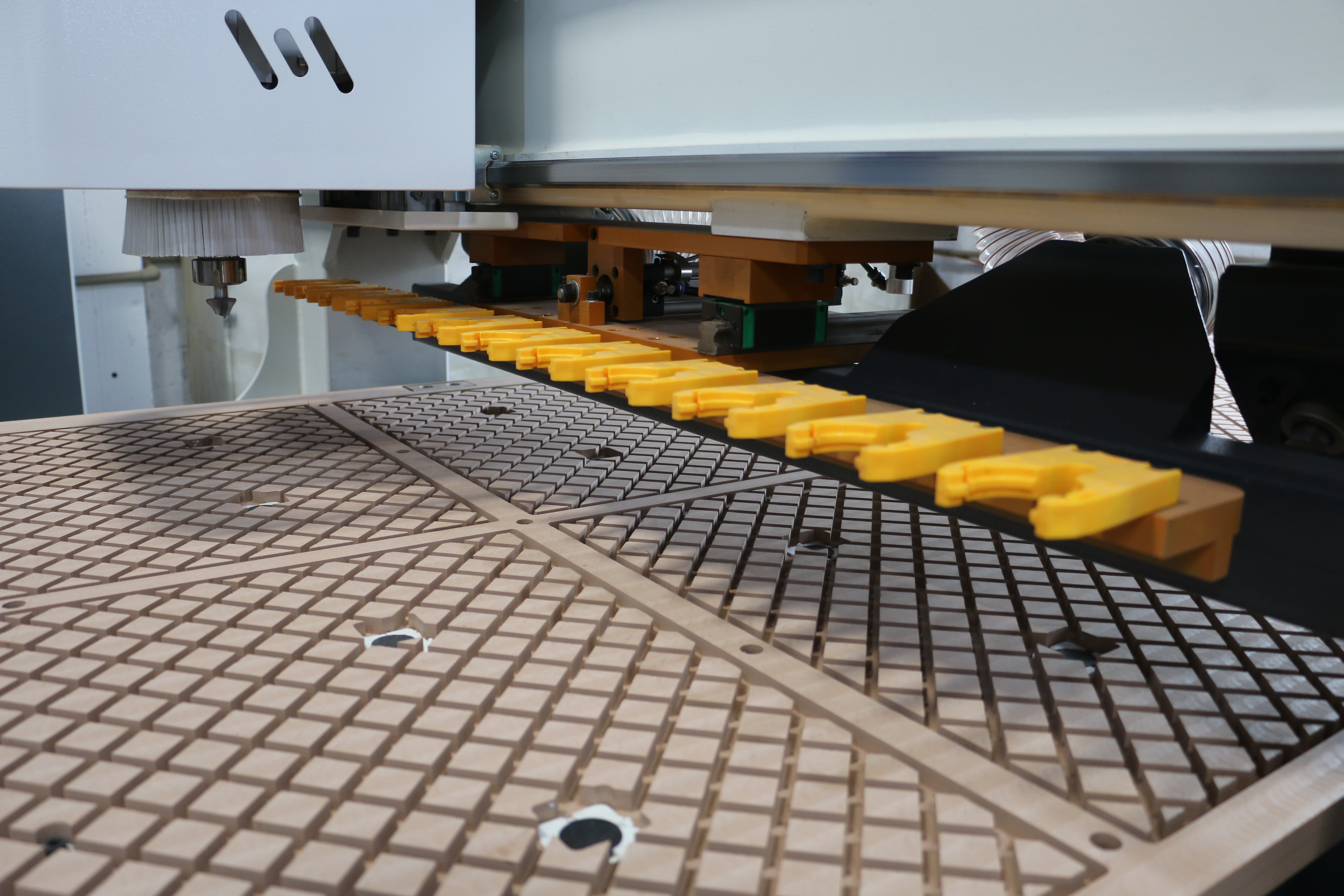

Straight 12 tool magazine
The tool library can carry 12 knives to meet various processing needs, and the tool can be automatically changed according to the set program

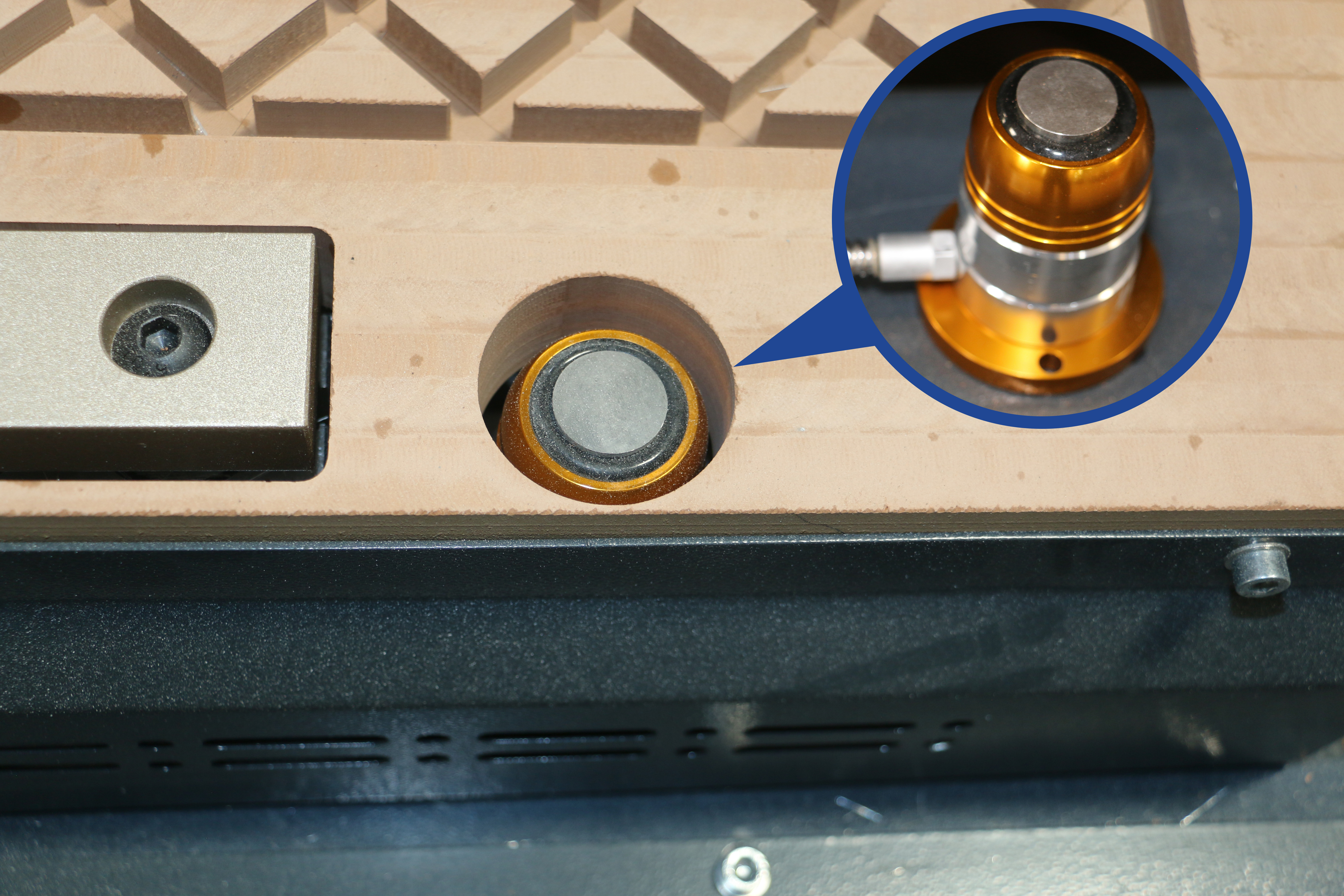

Automatic tool setting
The automatic tool setting function ensures the machining accuracy, and the operation equipment is more convenient and fast

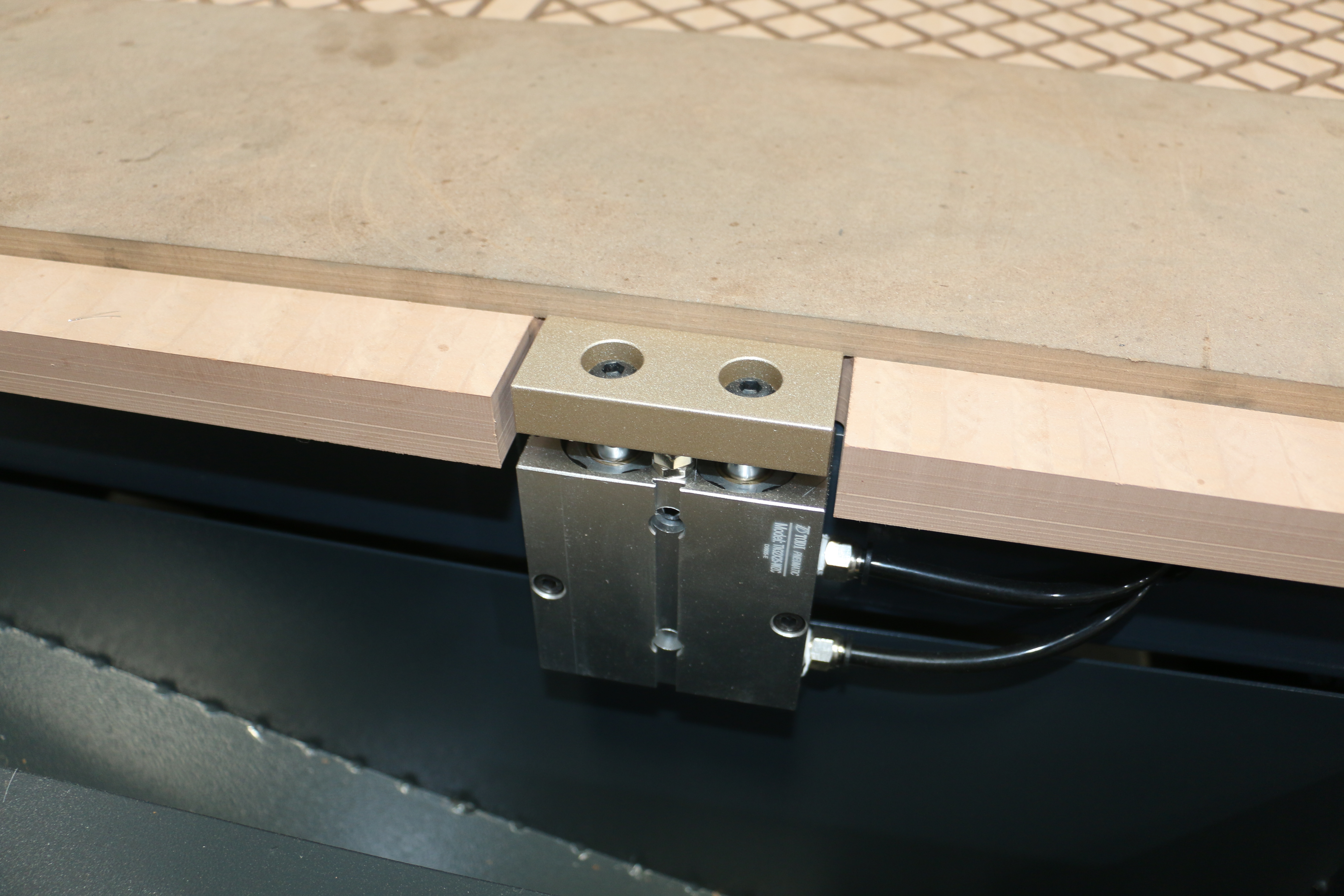

Multi-point accurate positioning
Ensure the positioning accuracy of plate processing, accurate cutting

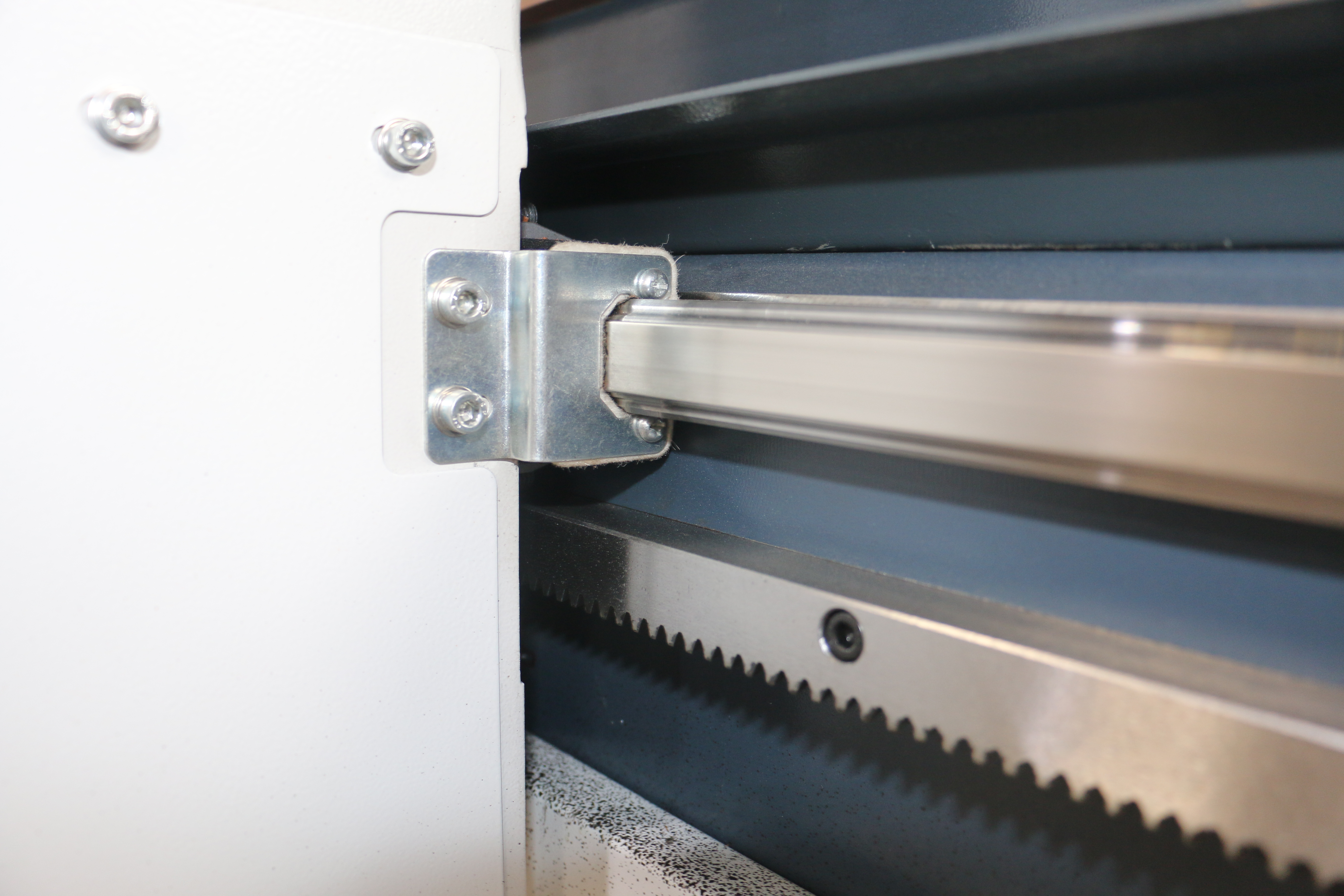

High precision guide
Large size, large contact surface, strong load-bearing capacity, ensuring stable equipment operation during high-speed machining
High precision spindle
High precision spindle ensures stable operation of equipment during machining

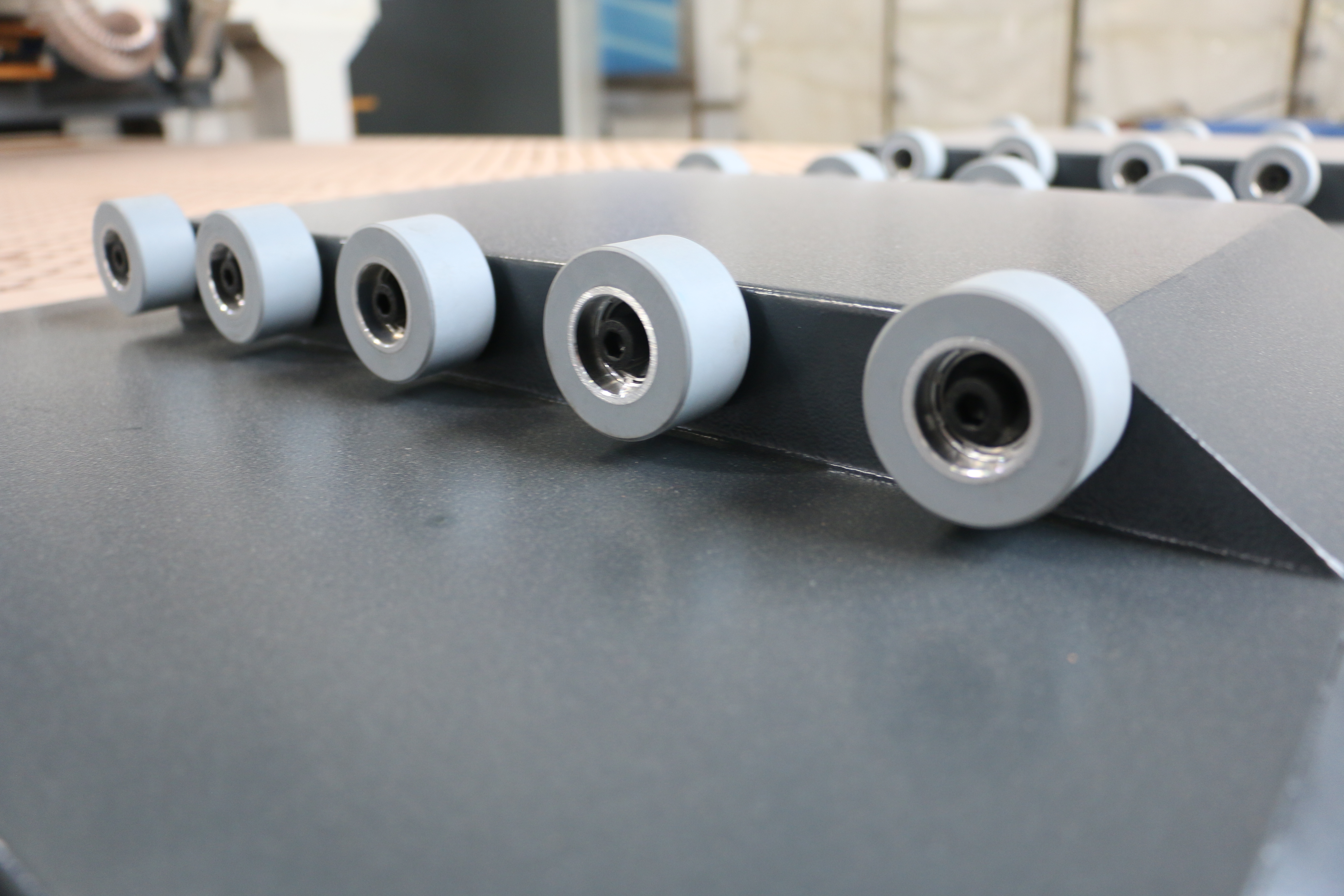

Automatic loading and unloading platform
The material is stable, with the lifting platform, improve the work, and automatically push the processed sheet to the cutting platform after the completion of processing, and clean the dust left on the table
