Product

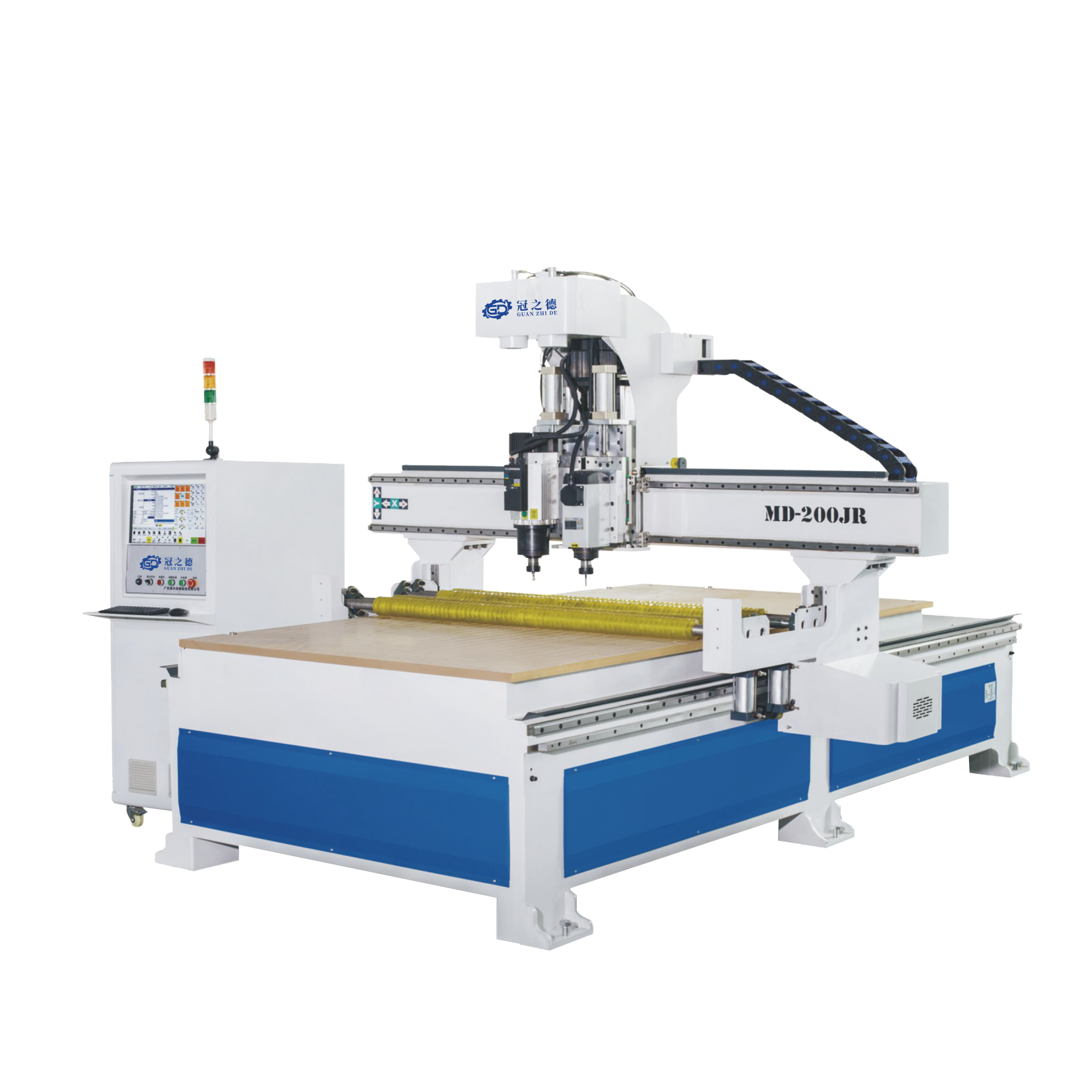

MD-200JR

X-axis maximum travel                             1600mm
Maximum travel of Y axis                          2500mm
Z axis maximum travel                              200mm
X-axis maximum positioning speed           70m/min
Y axis maximum positioning speed           70m/min
Z axis maximum positioning speed           20m/min

Product Description:

Product Description


Technical Data

X-axis maximum travel
1600mm
Number of spindles
2主轴
Maximum travel of Y axis
2500mm
Shank diameter
12.7、6.35、12、10、6
Z axis maximum travel
200mm
Motor power
9kw+6kw
X-axis maximum positioning speed
70m/min
Spindle speed
18000r/min
Y axis maximum positioning speed70m/minTotal power20kw
Z axis maximum positioning speed20m/minOperating voltageAC380V,50HZ
X-axis machining range1300mmWorking pressure0.6-0.8Mpa
Y-axis machining range2800mmMachine net weight2.4T
Z-axis machining range170mmDimensions3100x2300x2100mm

Product real shot and details


IMG_7903.JPGStraight 12 tool magazine

The tool library can carry 12 knives to meet various processing needs, and the tool can be automatically changed according to the set program


Automatic tool setting

The automatic tool setting function ensures the machining accuracy, and the operation equipment is more convenient and fast

IMG_7906.JPGMulti-point accurate positioning

Ensure the positioning accuracy of plate processing, accurate cutting


High precision guide

Large size, large contact surface, strong load-bearing capacity, ensuring stable equipment operation during high-speed machining


High precision spindle

High precision spindle ensures stable operation of equipment during machining

IMG_7902.JPGAutomatic loading and unloading platform

The material is stable, with the lifting platform, improve the work, and automatically push the processed sheet to the cutting platform after the completion of processing, and clean the dust left on the table
