Product

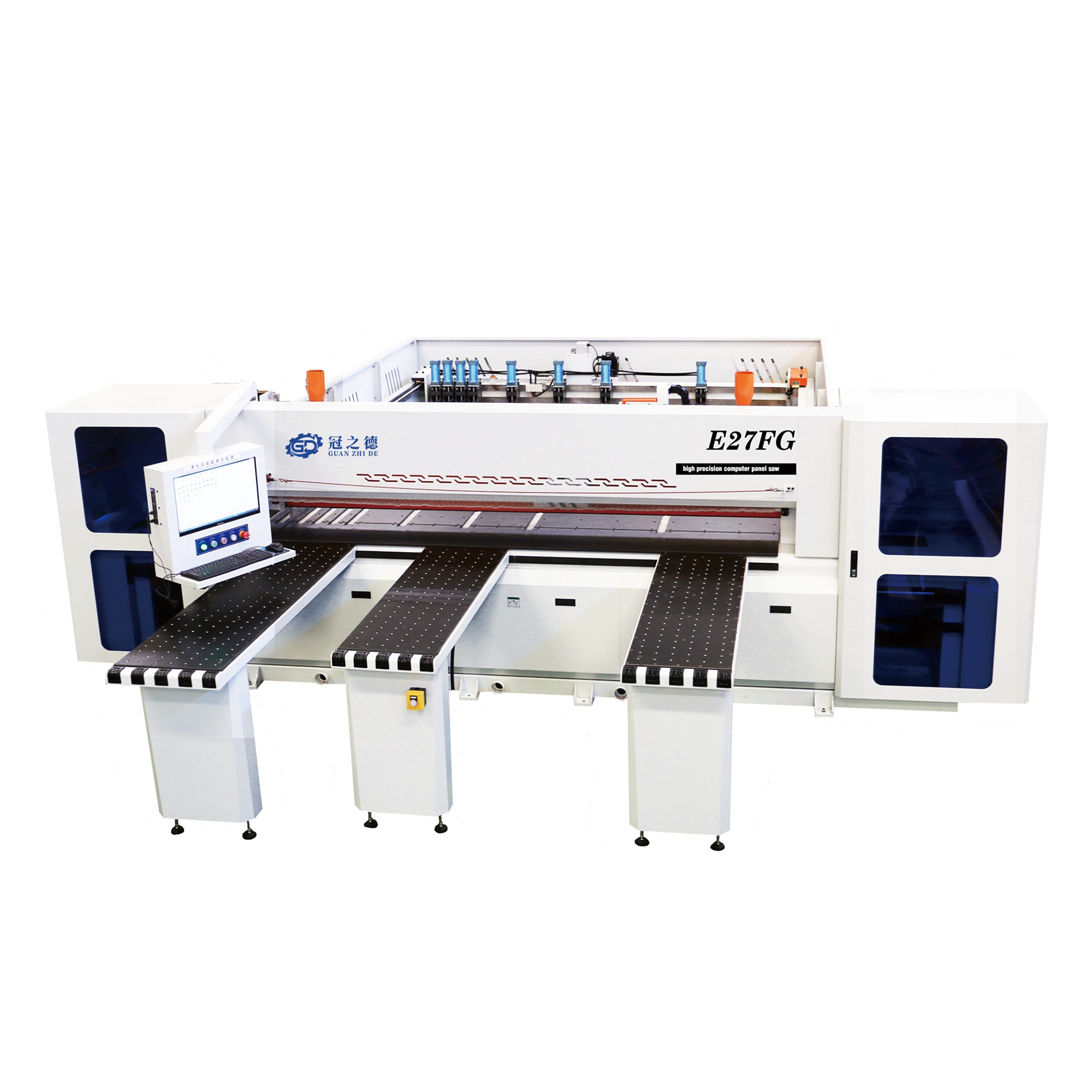

E27FG

Max.Cutting Length                            2800mm
Max.Cutting Thickness                       100mm
Main Saw Blade Diameter                  400mm
Main Saw BladeInner Diameter          60mm
Main Saw Rotating Speed                  3910rpm
Scoring Saw Blade Diameter             180mm
Scoring Saw Blade Inner Diameter    30mm
Scoring Saw Blade Inner Diameter     5860rpm

Product Description:
Product Description


Technical Data
Max. Cutting Length
2800mm
Saw Carriage Backward Speed
100m/min
Max.Cutting Thickness
100mm
Main Saw Motor
13kw
Main Saw Blade Diameter
400mm
Saw Carriage Driving Motor
1.5kw
Main Saw Blade Inner Diameter
60mm
Automatic Feeding Motor
1.5kw(AC Servomotor)
Main Saw Rotating Speed3910rpmTotal Power19kw
Scoring Saw Blade Diameter180mmAutomatic Feeding Speed40m/min
Scoring Saw Blade Inner Diameter30mmAir Pressure5-7kg/cm²
Scoring Saw Blade Inner Diameter58600rpmWorking Table Height From Ground Level900mm
Saw Carriage Forward Speed Adjustable1-80m/minWeight

4500kg

Dimension(LxWxH)5300 x 5630 x 1750mm


Product real shot and details



Robotic hand automatic feeding device
KD829 is equipped with 8 high performance clips (9 of KD833), with anti-collision rubber head to protect the plate


Robotic hand automatic feeding device

Servo motor drive using Taiwan imported KH grinding grade gear, rackWith: high hardness, high precision, wear resistance,
long-term guarantee accuracy and other characteristics


Robotic hand automatic feeding device

Imported high-precision speed reducer (Italy SITI) Automatic oil injection system


Saw car structure
Saw car adopts the positive and reverse mode, driven by the same motor.


Saw car structure
Saw car adopts the positive and reverse mode, driven by the same motor.


Saw car structure
Saw car adopts the positive and reverse mode, driven by the same motor.


Sub-platform structure
The feed inlet adopts air floating bead table, 3.0kw high pressure fan The piece moves easily and conveniently


Electrical structure
Motor: 13 kW for main saw motor (optional 15 kW) Saw height 100,615mm plate easily cut


Electrical structure
Electrical appliances: using Huichuan servo, Delta PLC, Schneider Electric, contactor, prolong the service life of the machine.


safeguard construction
The feed inlet adopts the manual cable emergency stop device. Make people safer Clear dust curtain can make the working
environment cleaner, sawing accuracy is higher.

Side by side (apolegamy) G
Using the servo side, accurate positioning


computer (apolegamy) F

Philips 21.5-inch display screen, professional industrial control computer host
