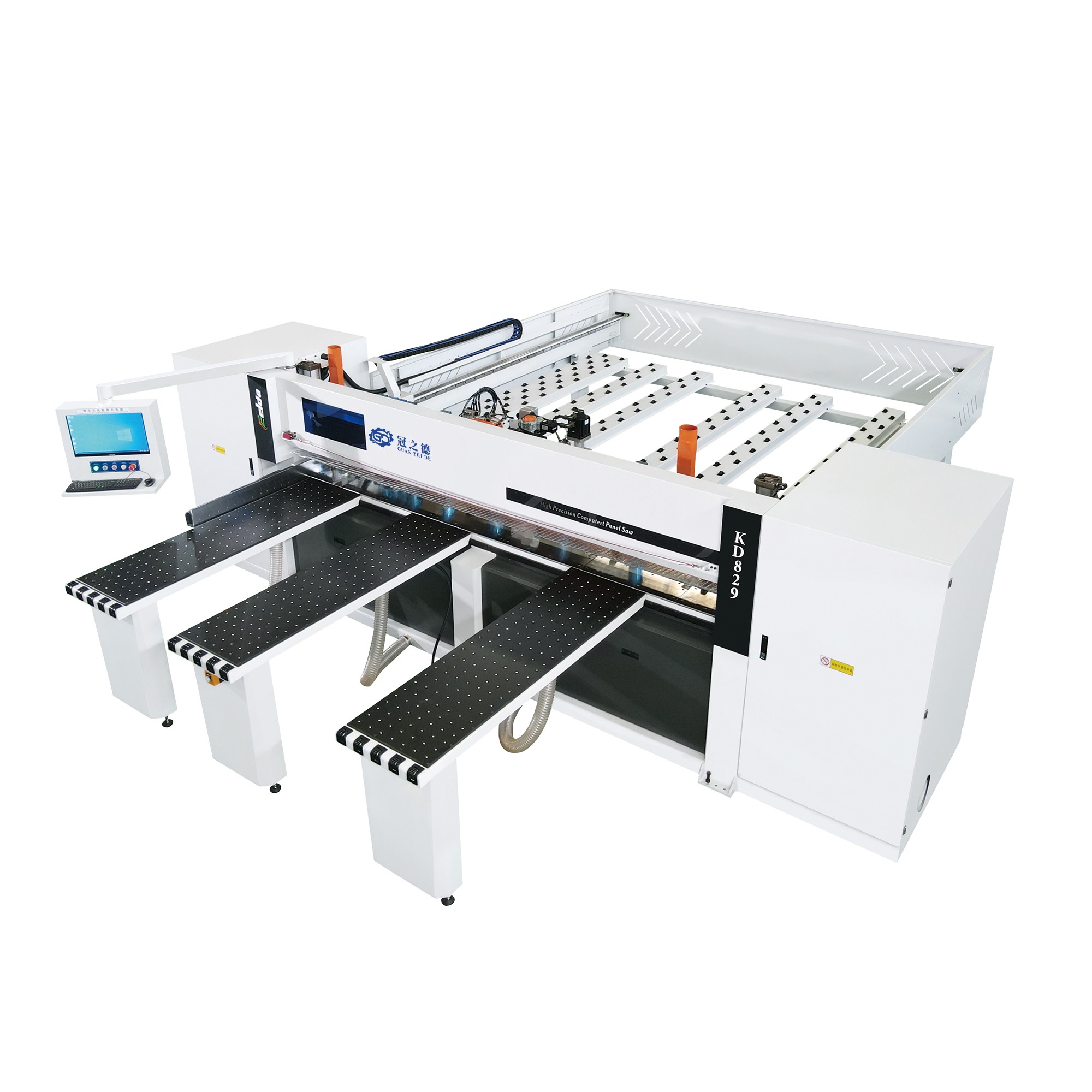

Max.Cutting Length 2900mm Max.Cutting Thickness 120mm Main Saw Blade Diameter 400/450mm Main Saw BladeInner Diameter 75mm Main Saw Rotating Speed 3910rpm Scoring Saw Blade Diameter 200mm Scoring Saw Blade Inner Diameter 50mm Scoring Saw Blade Inner Diameter 5860rpm
| Product Description |
| Technical Data |
| Max. Cutting Length | 2900mm | Saw Carriage Backward Speed | 1-80m/min |
| Max.Cutting Thickness | 120mm | Main Saw Motor | 18.5kw |
| Main Saw Blade Diameter | 400/450mm | Saw Carriage Driving Motor | 1.8kw |
| Main Saw Blade Inner Diameter | 75mm | Automatic Feeding Motor | 1.8kw(AC Servomotor) |
| Main Saw Rotating Speed | 3910rpm | Total Power | 30.1kw |
| Scoring Saw Blade Diameter | 200mm | Automatic Feeding Speed | 40m/min |
| Scoring Saw Blade Inner Diameter | 50mm | Air Pressure | 5-7kg/cm² |
| Scoring Saw Blade Inner Diameter | 58600rpm | Working Table Height From Ground Level | 900mm |
| Saw Carriage Forward Speed Adjustable | 1-80m/min | Weight | 5000kg |
| Dimension(LxWxH) | 5000 x 5600 x 1750mm |
| Product real shot and details |

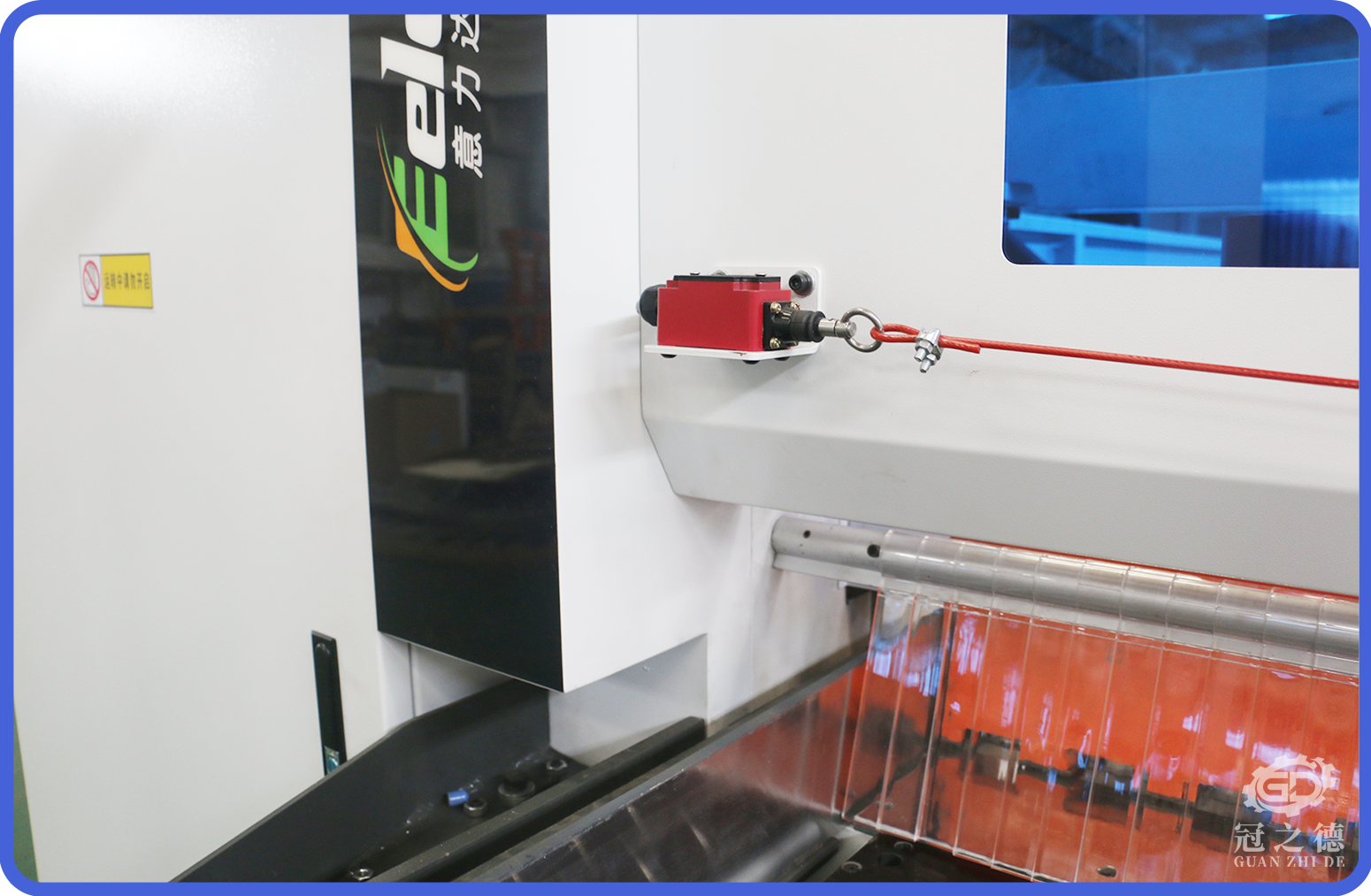

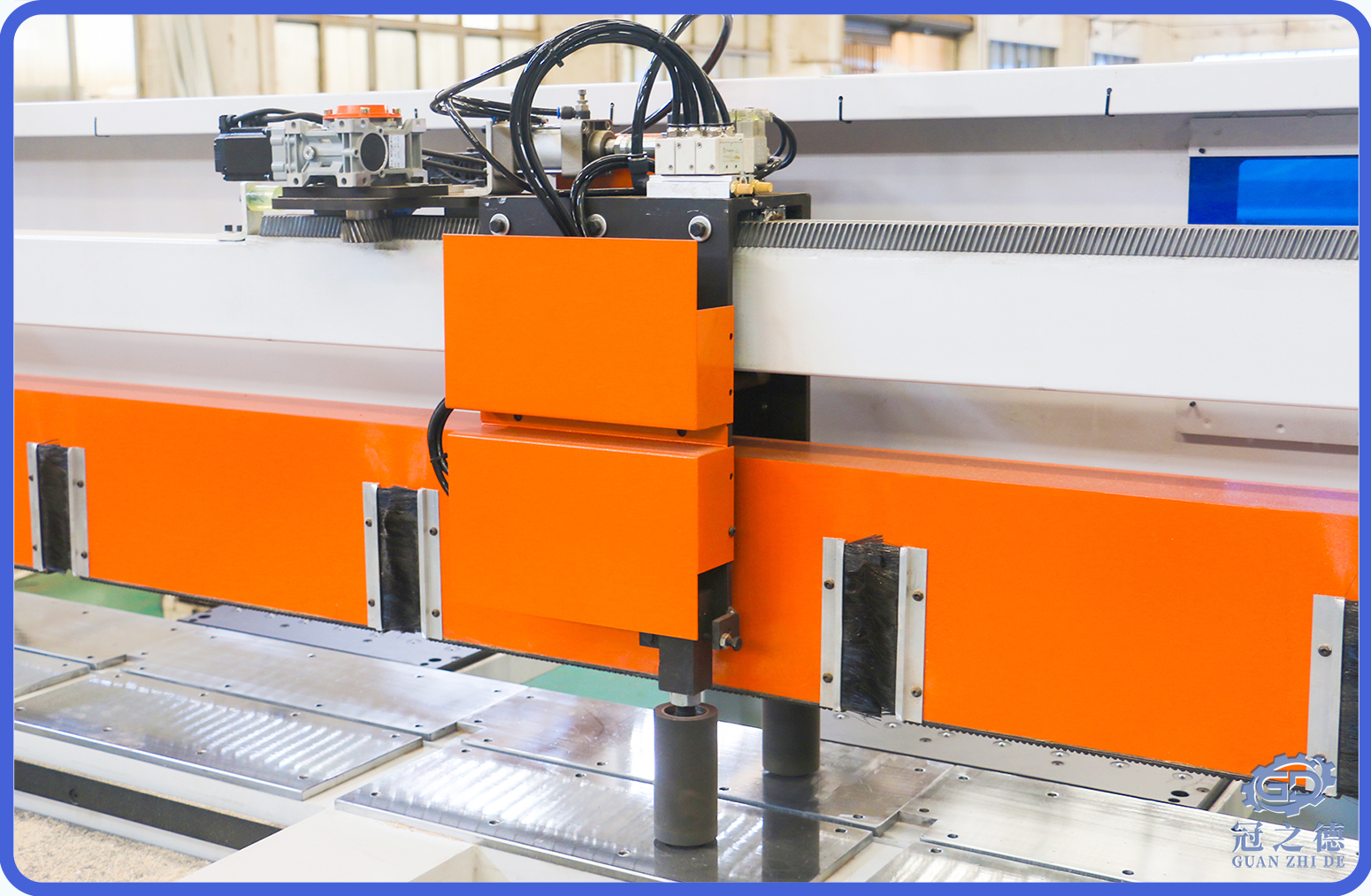

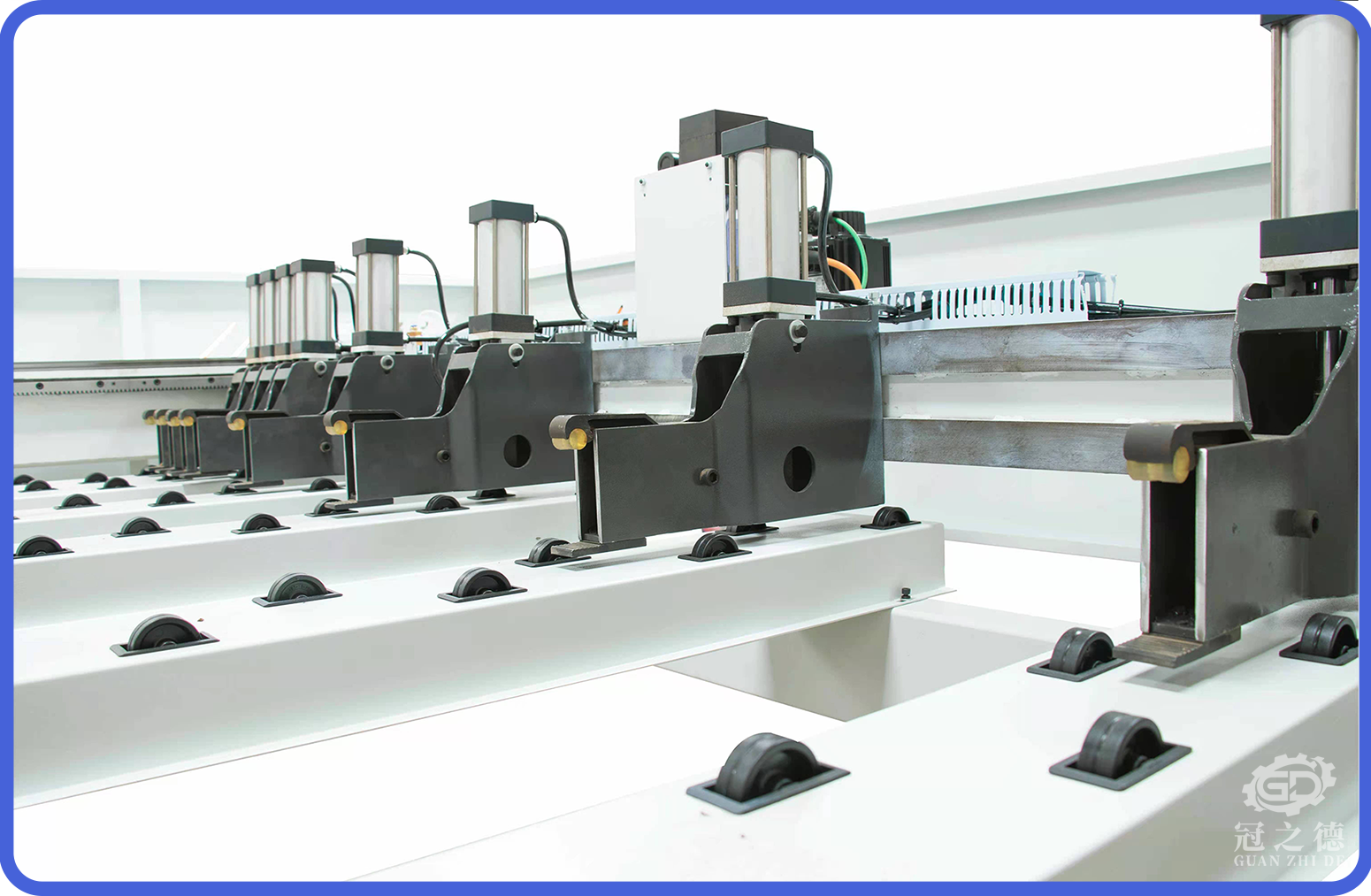

Robotic hand automatic feeding device
KD829 is equipped with 8 high performance clips (9 of KD833), with anti-collision rubber head to protect the plate
Robotic hand automatic feeding device

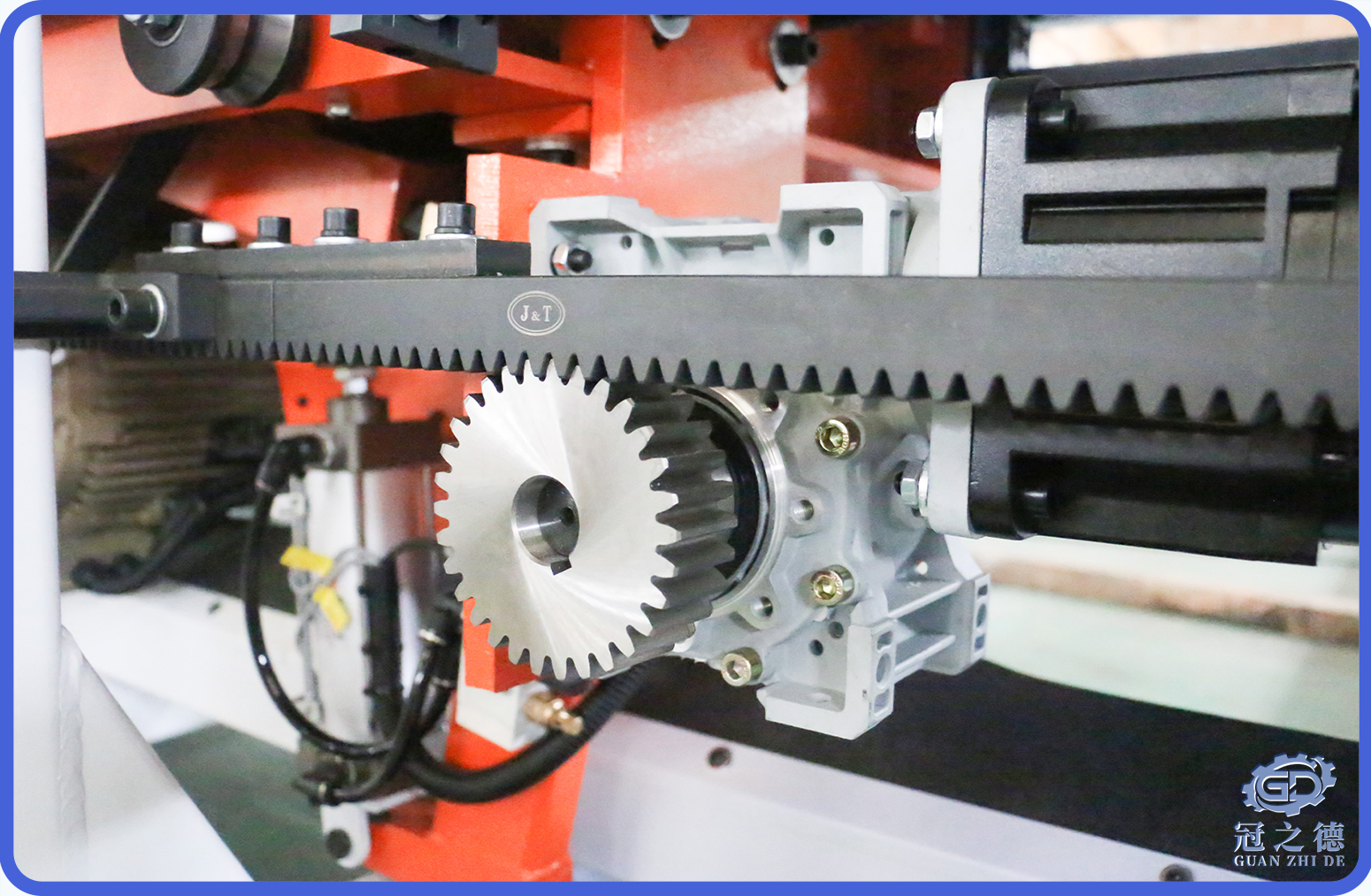

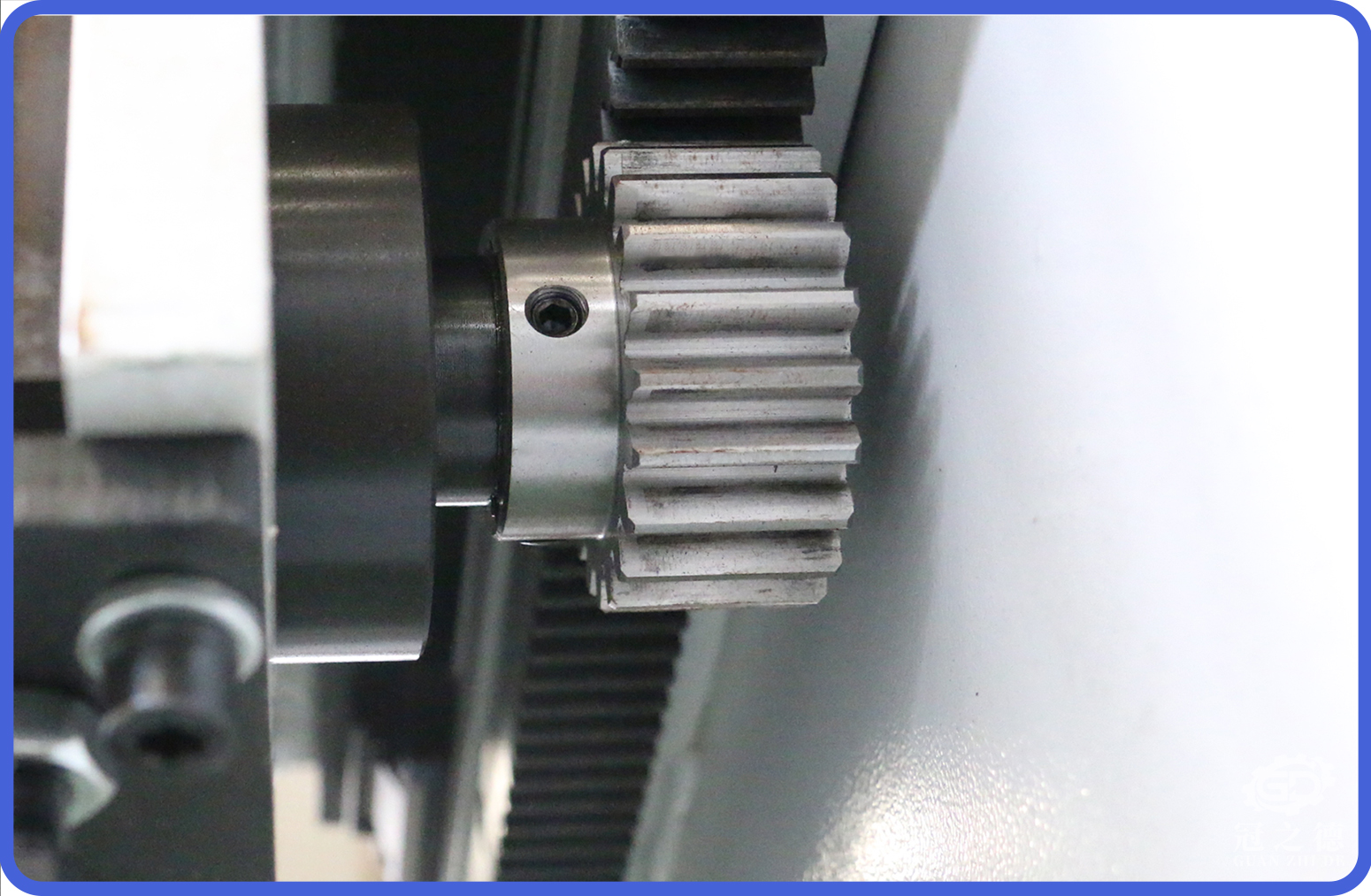

Servo motor drive using Taiwan imported KH grinding grade gear, rackWith: high hardness, high precision, wear resistance,
long-term guarantee accuracy and other characteristics
Robotic hand automatic feeding device

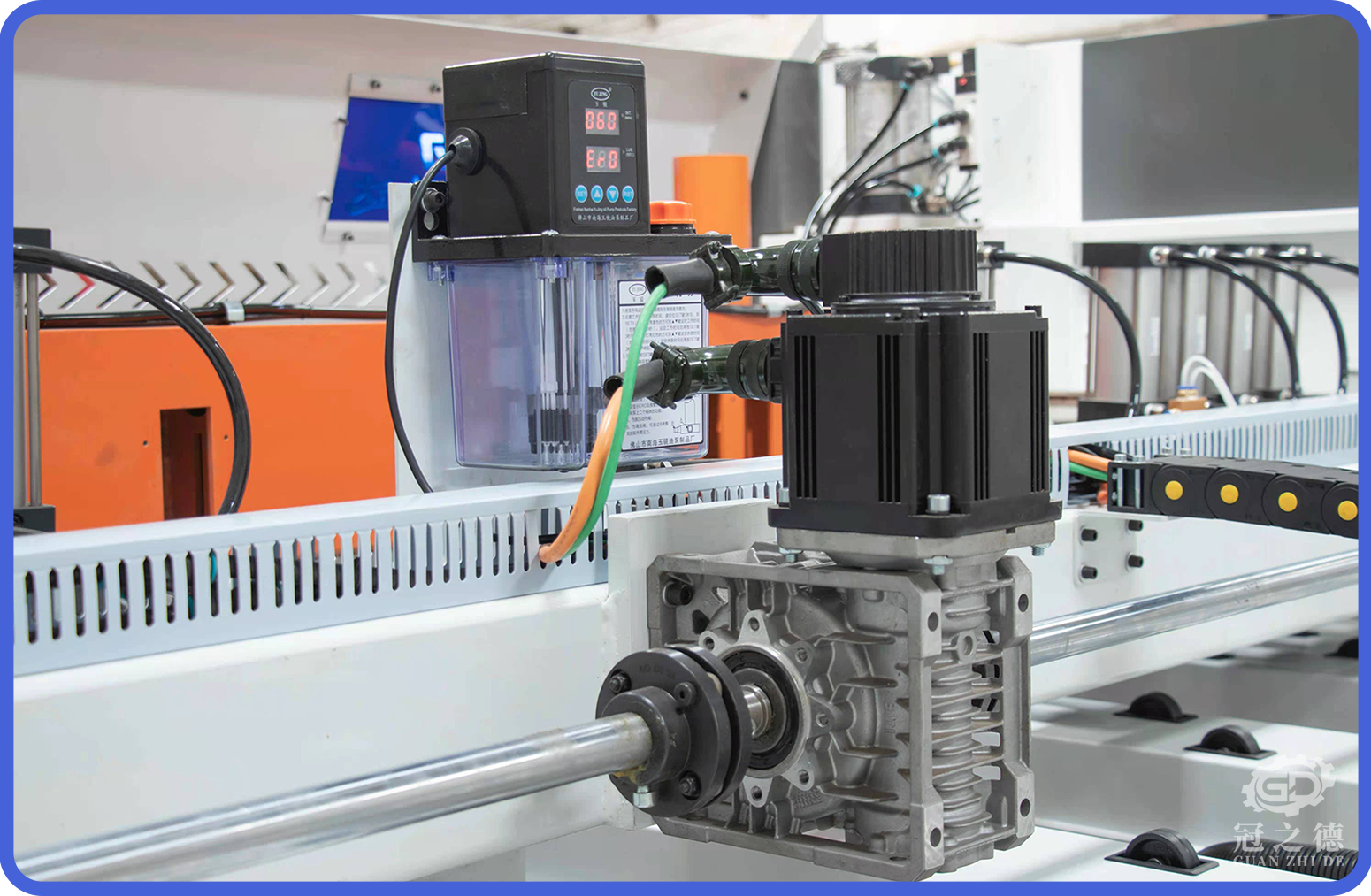

Imported high-precision speed reducer (Italy SITI) Automatic oil injection system

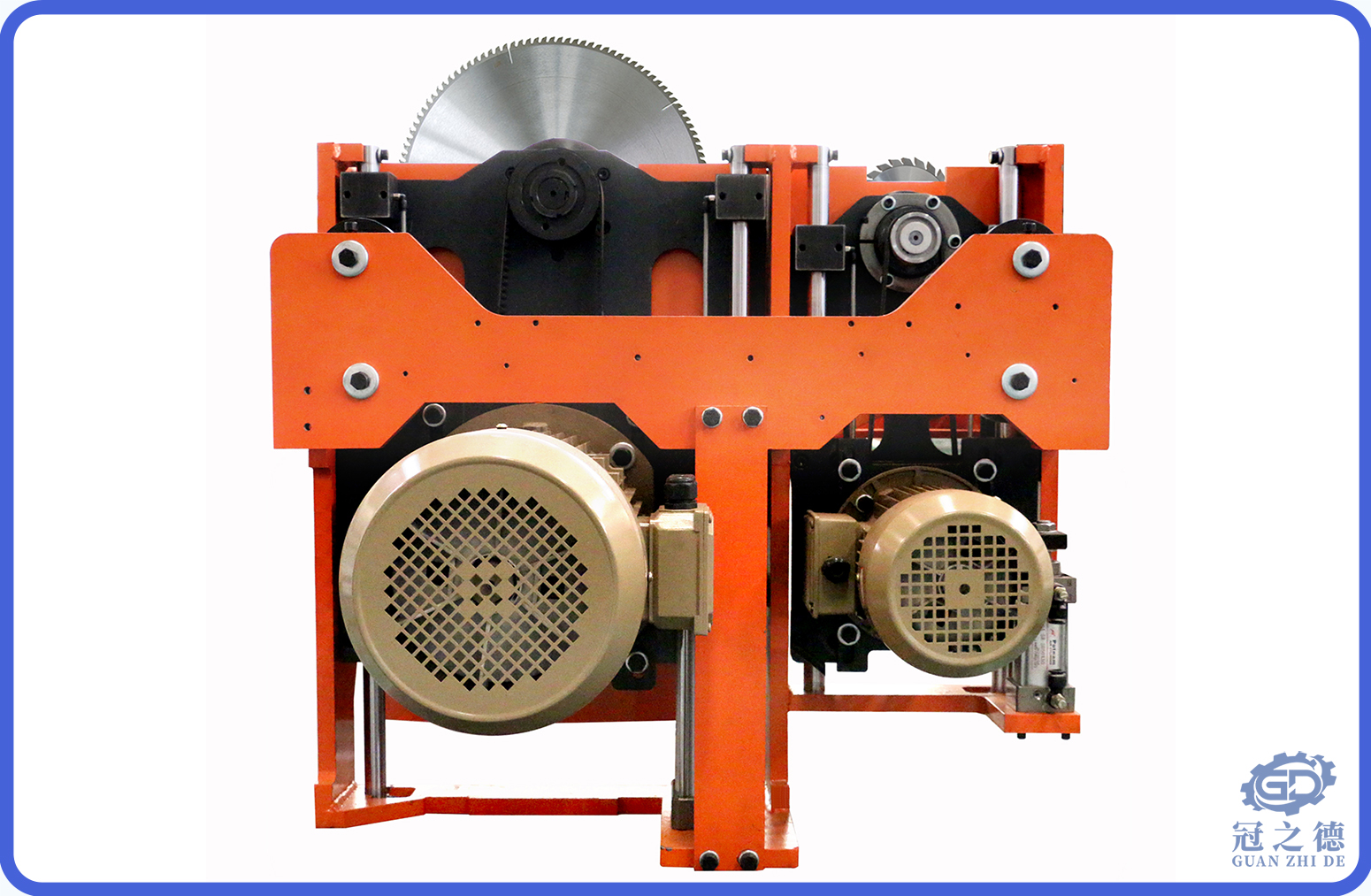

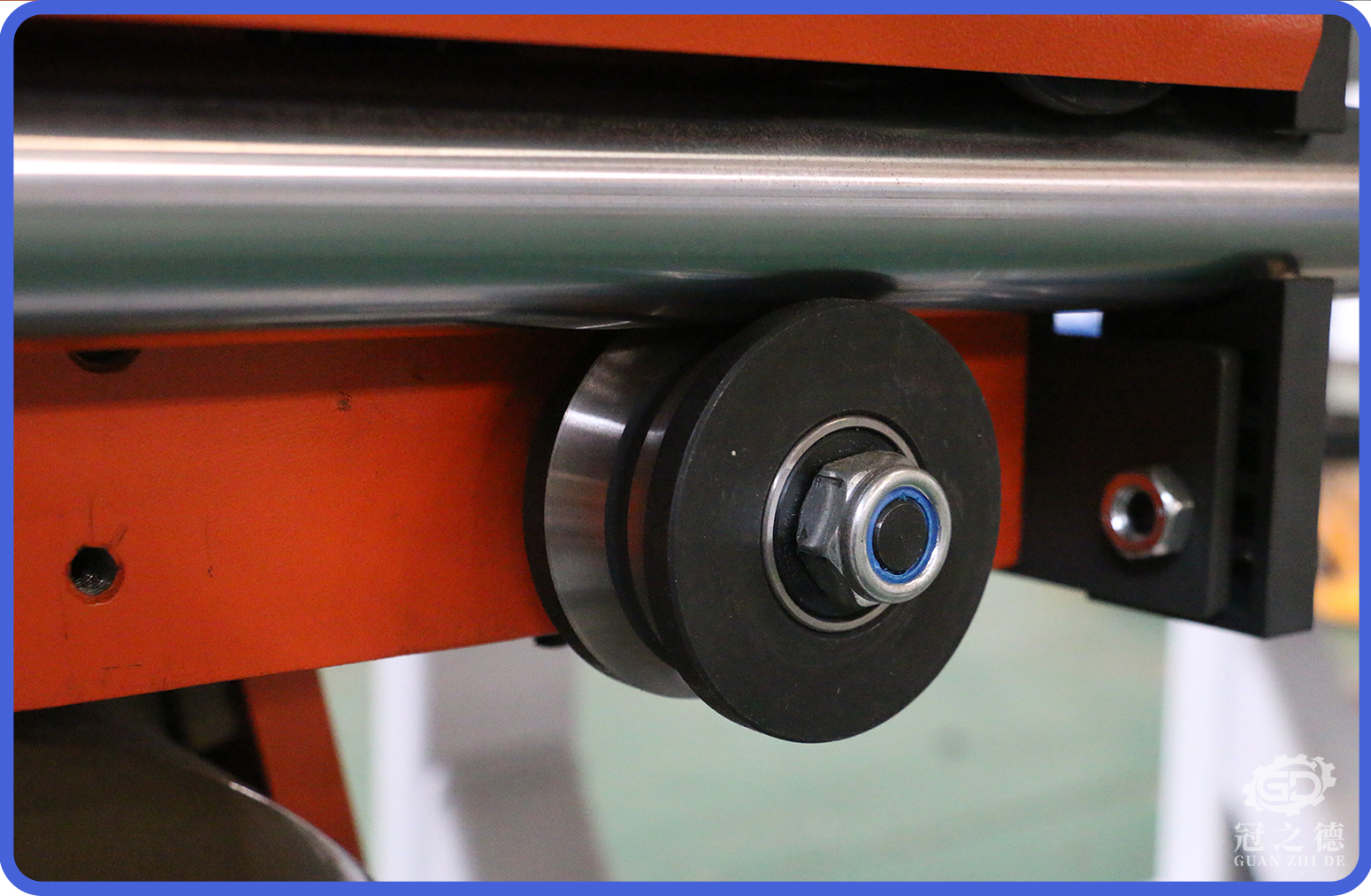

Saw car structure
Saw car adopts the positive and reverse mode, driven by the same motor.
Saw car structure
Saw car adopts the positive and reverse mode, driven by the same motor.

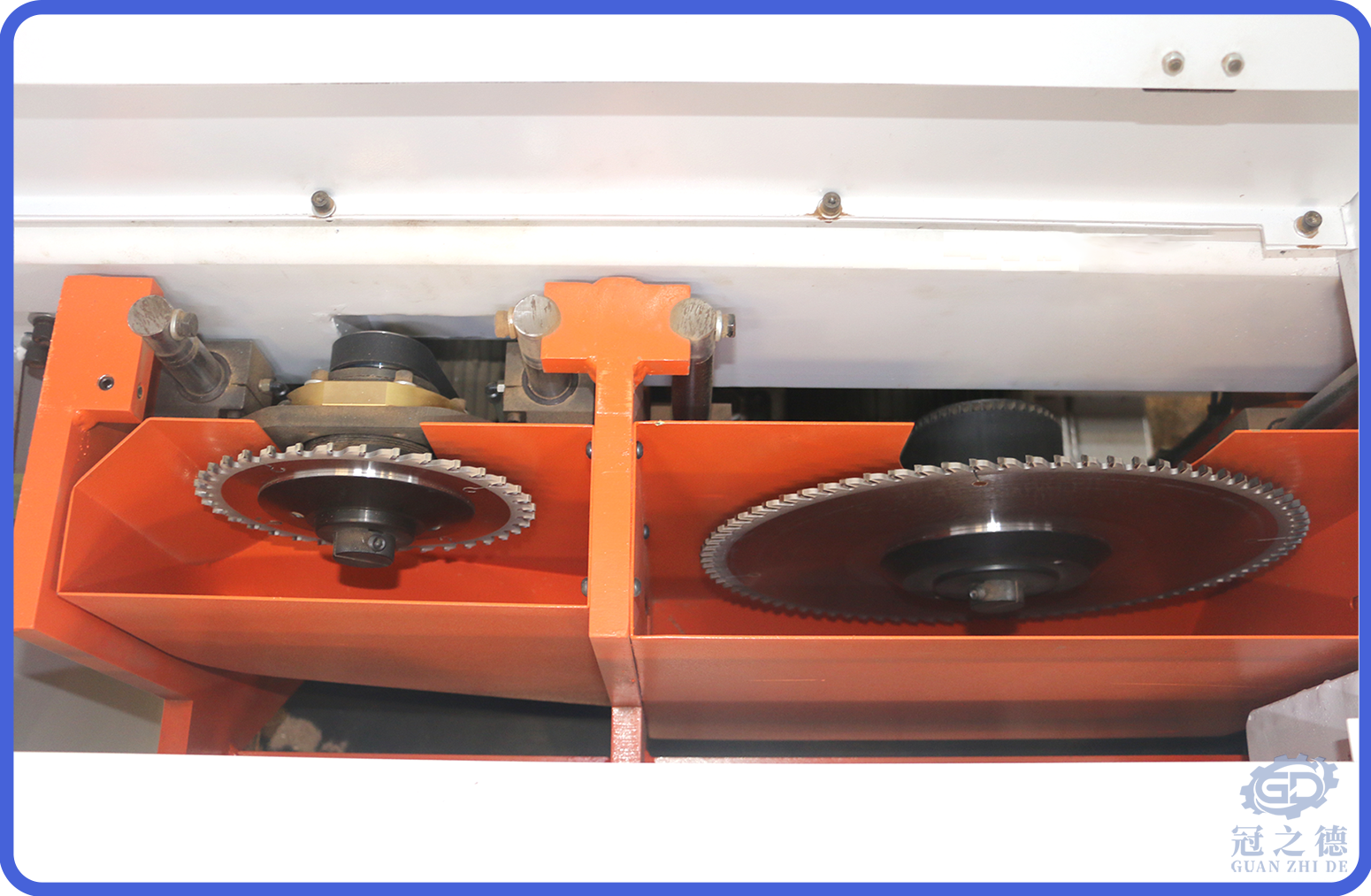

Saw car structure
Saw car adopts the positive and reverse mode, driven by the same motor.

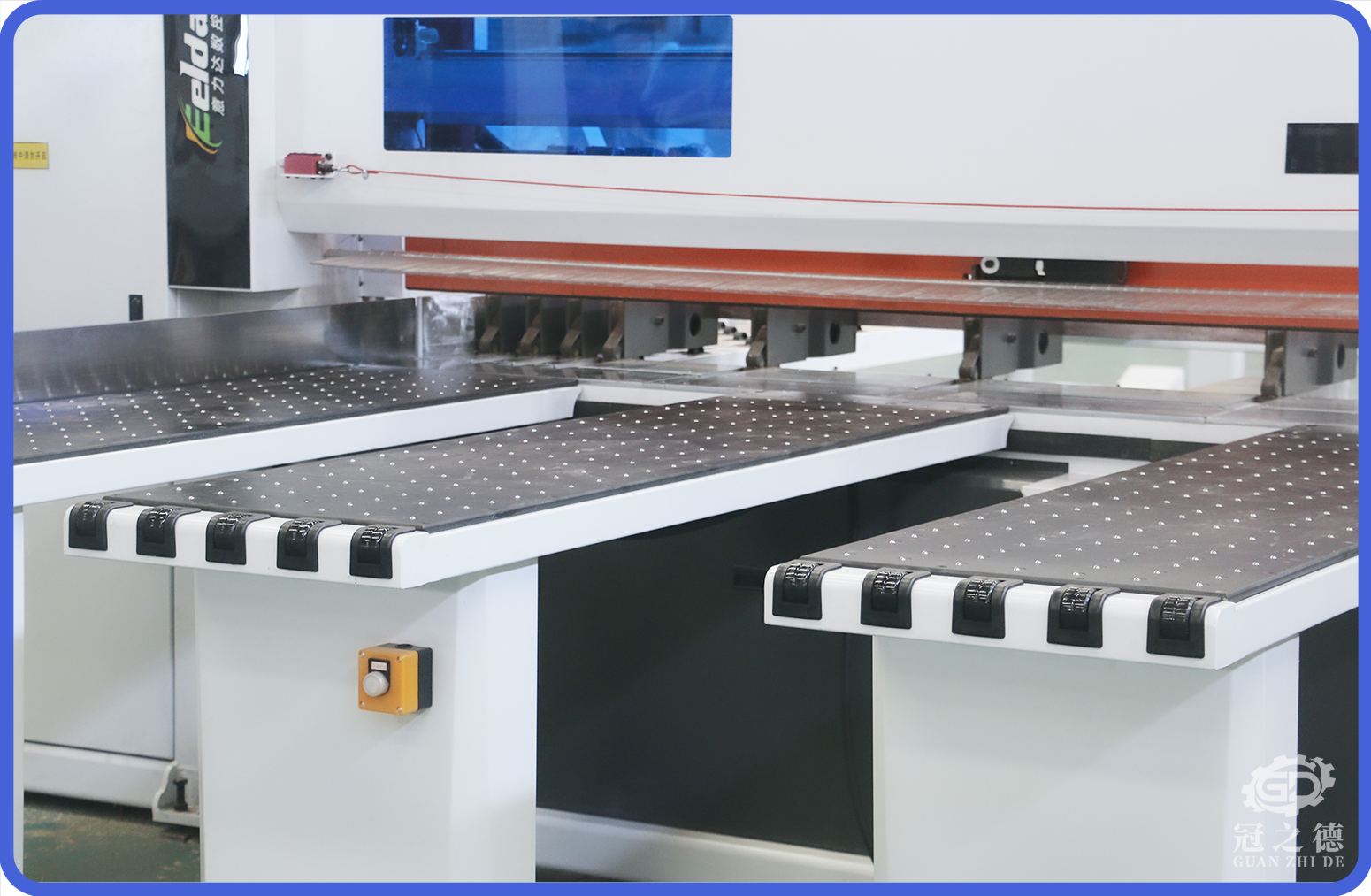

Sub-platform structure
The feed inlet adopts air floating bead table, 3.0kw high pressure fan The piece moves easily and conveniently
Electrical structure
Motor: 13 kW for main saw motor (optional 15 kW) Saw height 100,615mm plate easily cut
Electrical structure

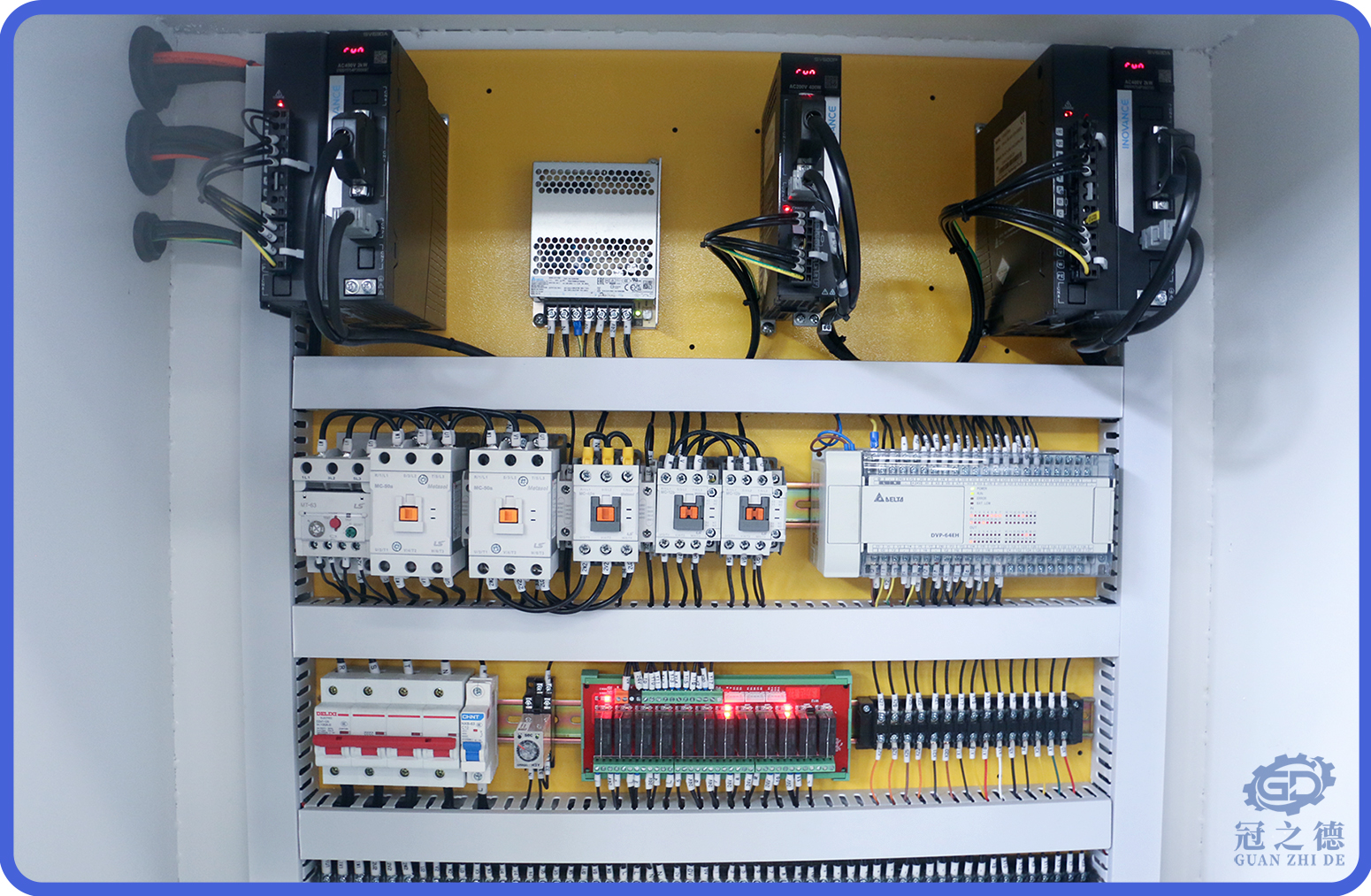

Electrical appliances: using Huichuan servo, Delta PLC, Schneider Electric, contactor, prolong the service life of the machine.

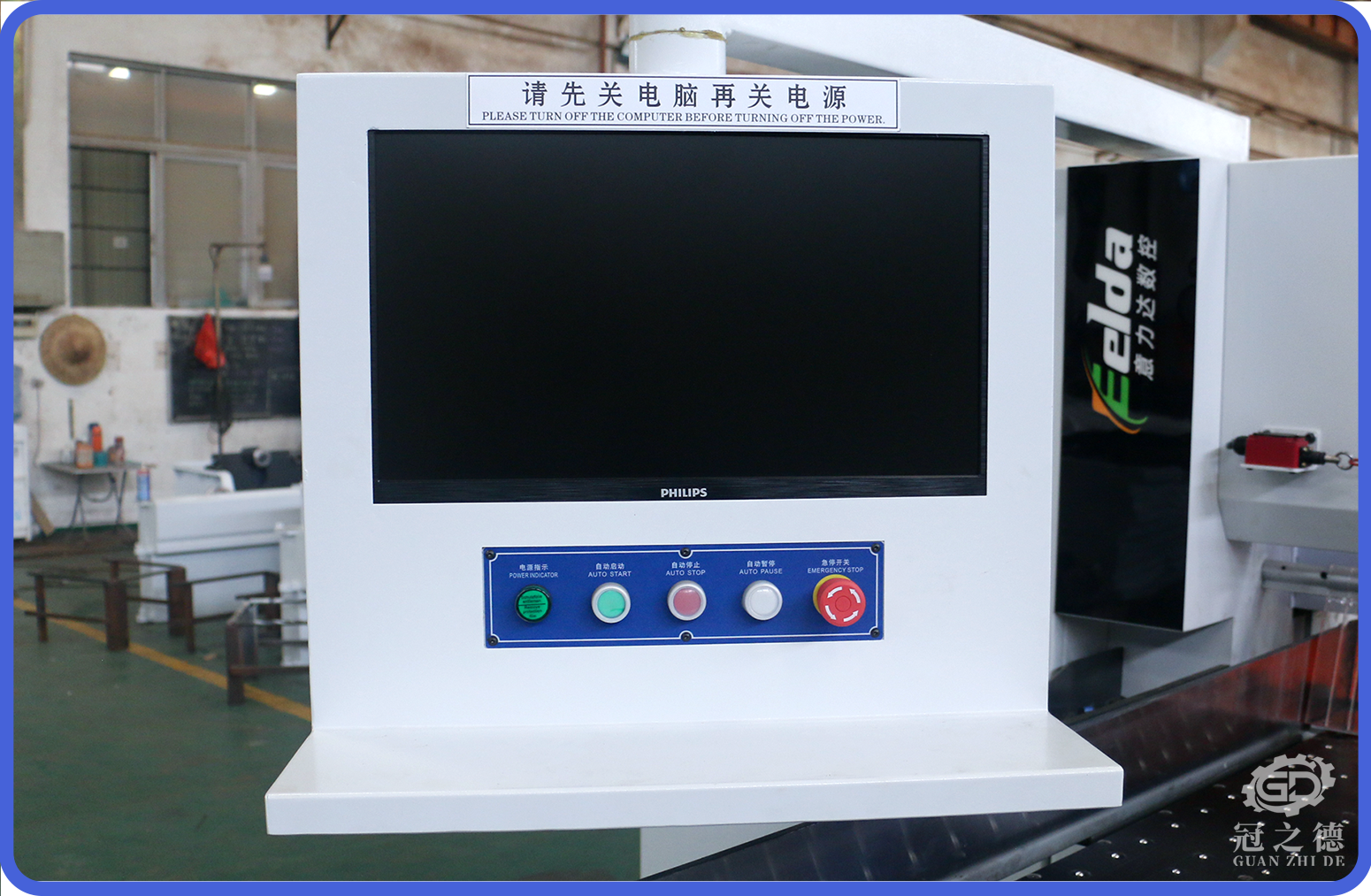

computer (apolegamy) F
Philips 21.5-inch display screen, professional industrial control computer host
